Wolf Tooth Rear Axle

Requesting pricing for

Wolf Tooth Rear Axle

$39.95

Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle
Wolf Tooth Rear Axle

Checking pickup availability...

Loading store availability...

Wolf Tooth Components

Wolf Tooth Rear Axle

SKU: AXLE12-167-100

$39.95

Loading options

Availability

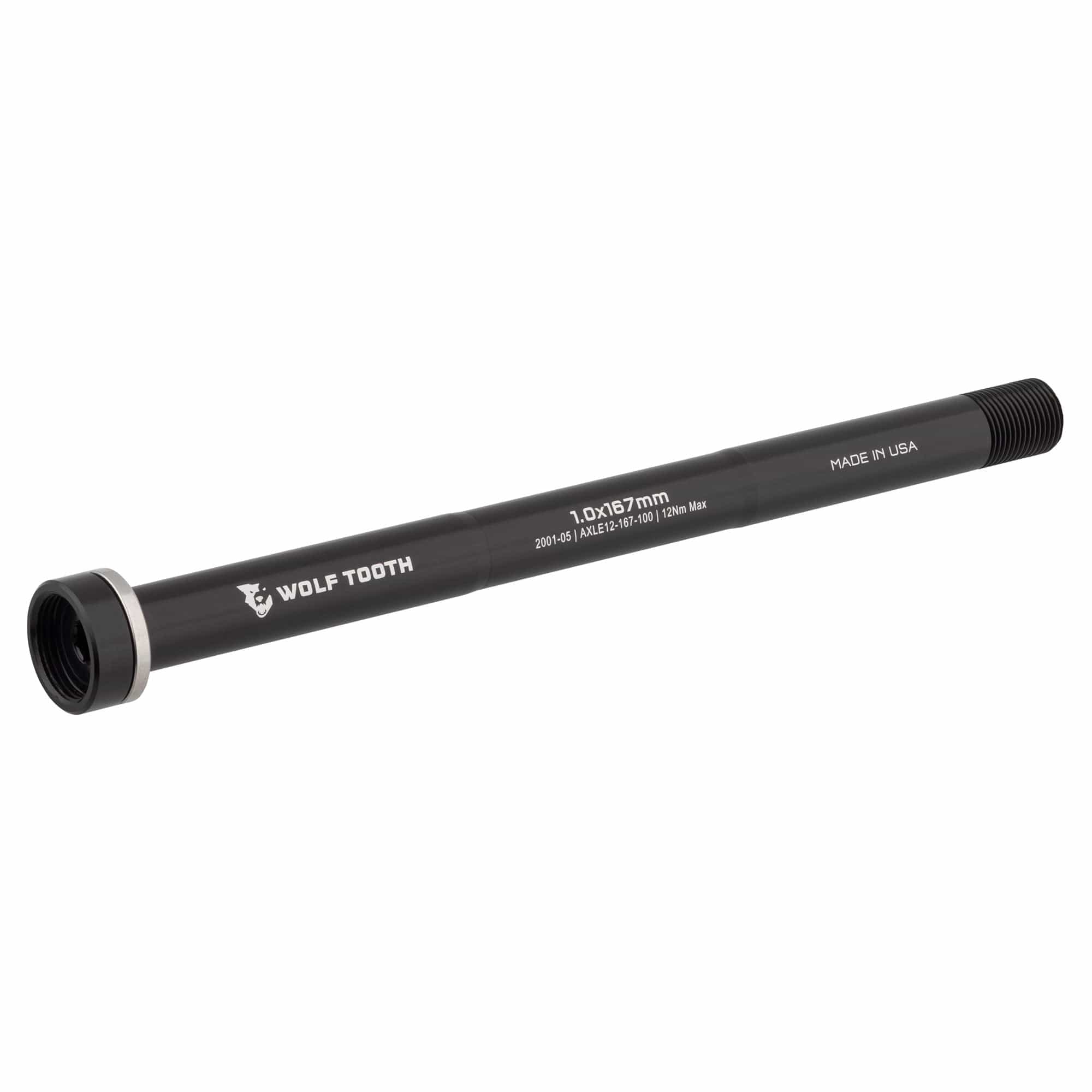

Aluminum / 1.0 x 167mm In Stock

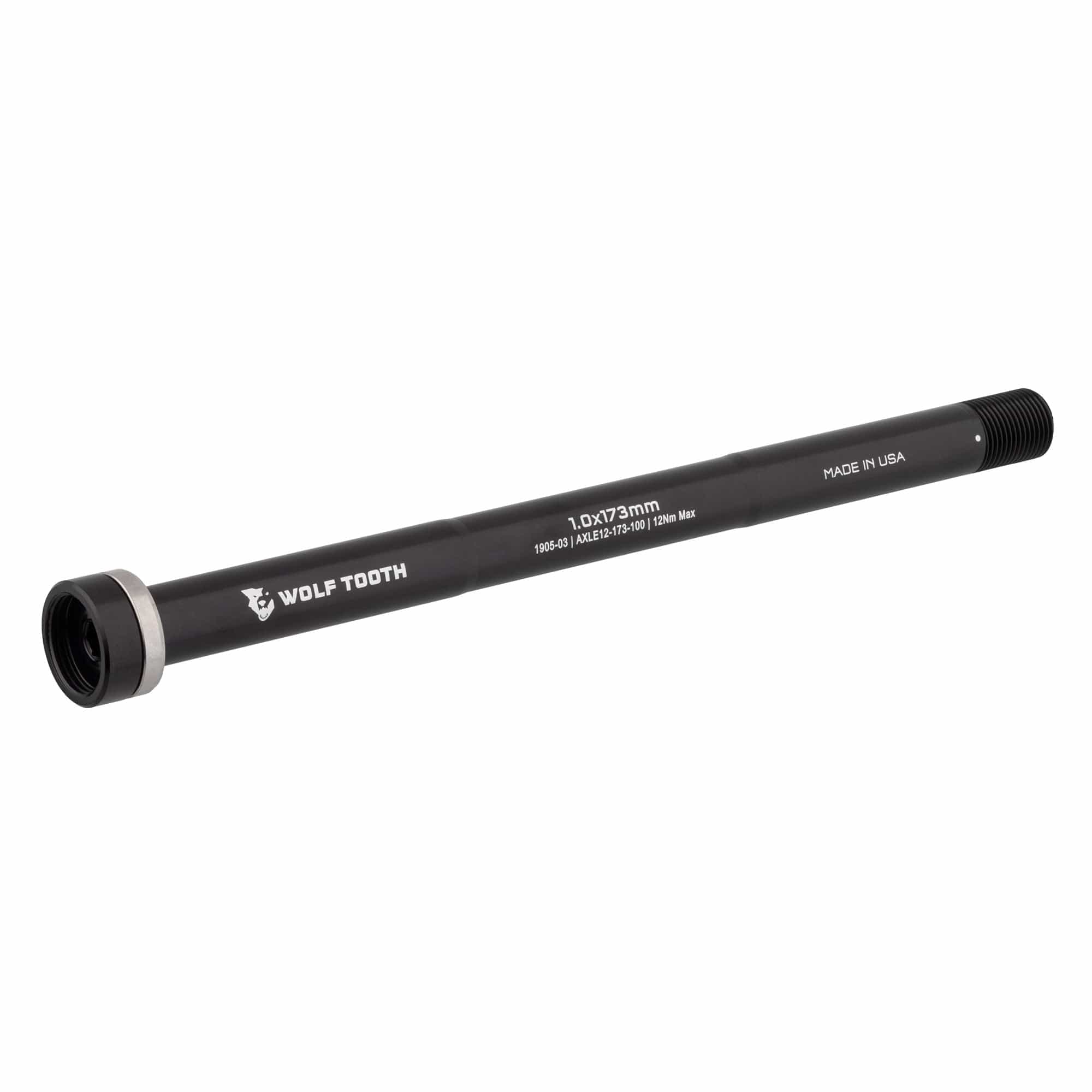

Aluminum / 1.0 x 173mm In Stock

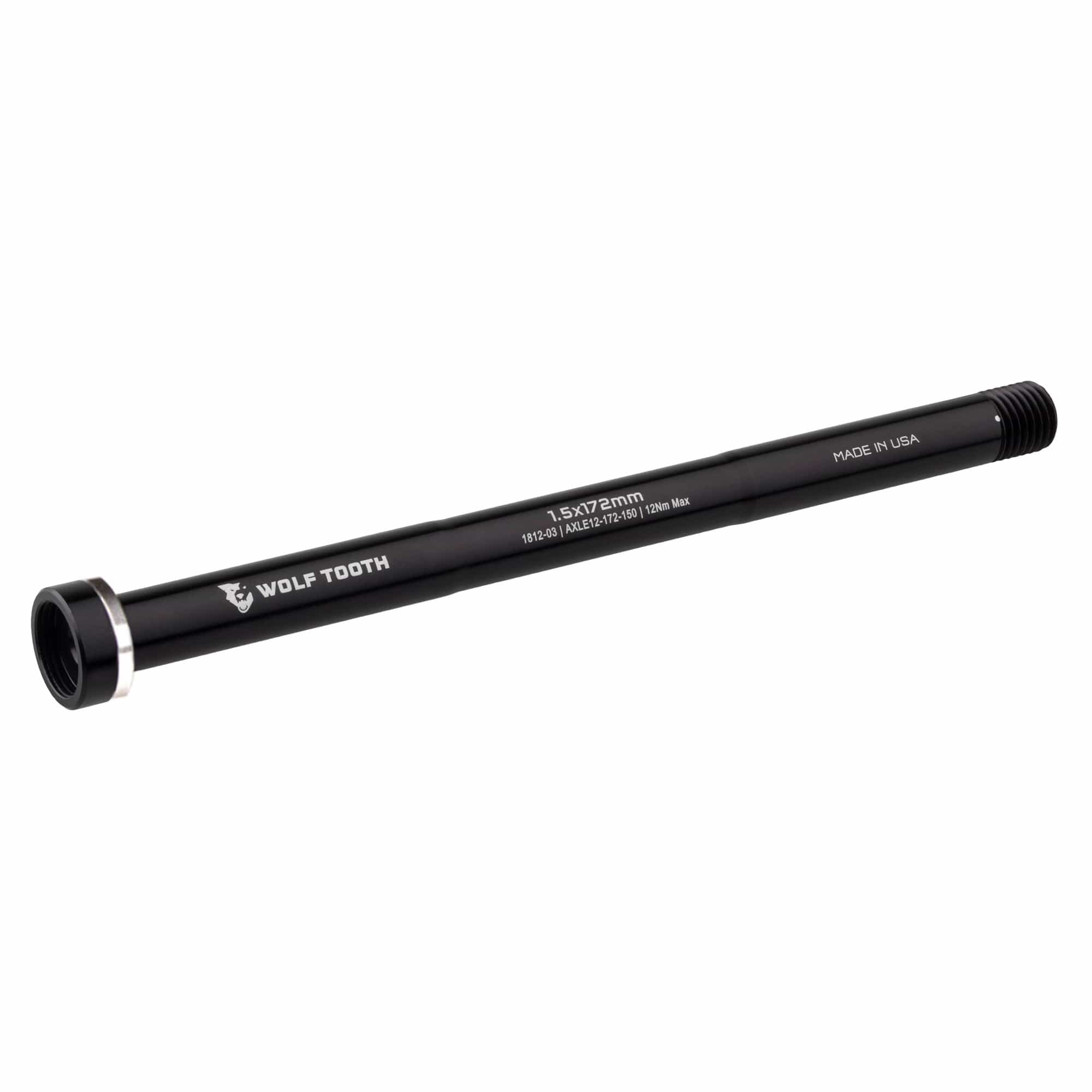

Aluminum / 1.5 x 172mm In Stock
Aluminum / 1.5 x 178mm In Stock

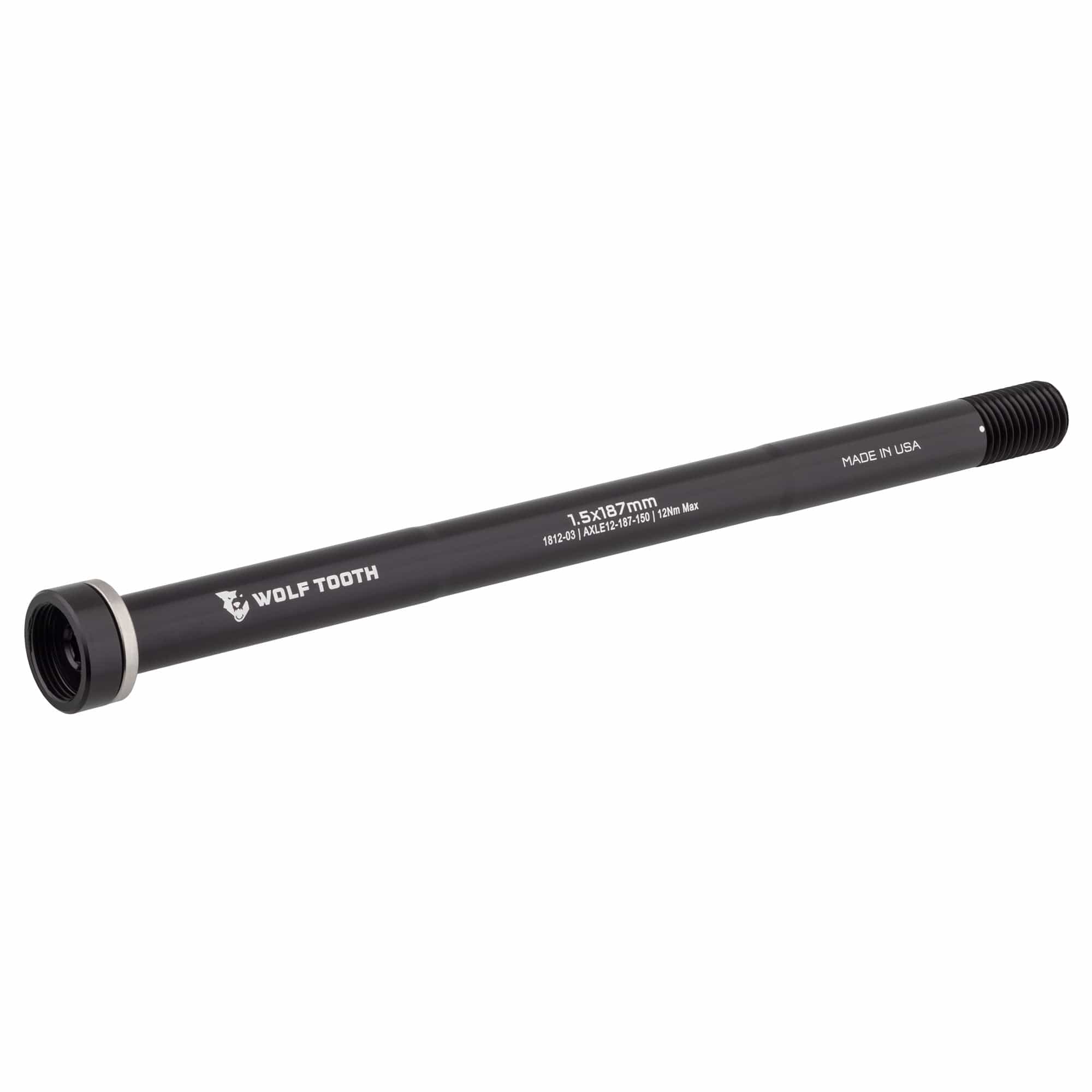

Aluminum / 1.5 x 187mm Sold Out
Aluminum / 1.75 x 174mm In Stock
Aluminum / 1.75 x 180mm In Stock
Aluminum / 1.75 x 192mm In Stock

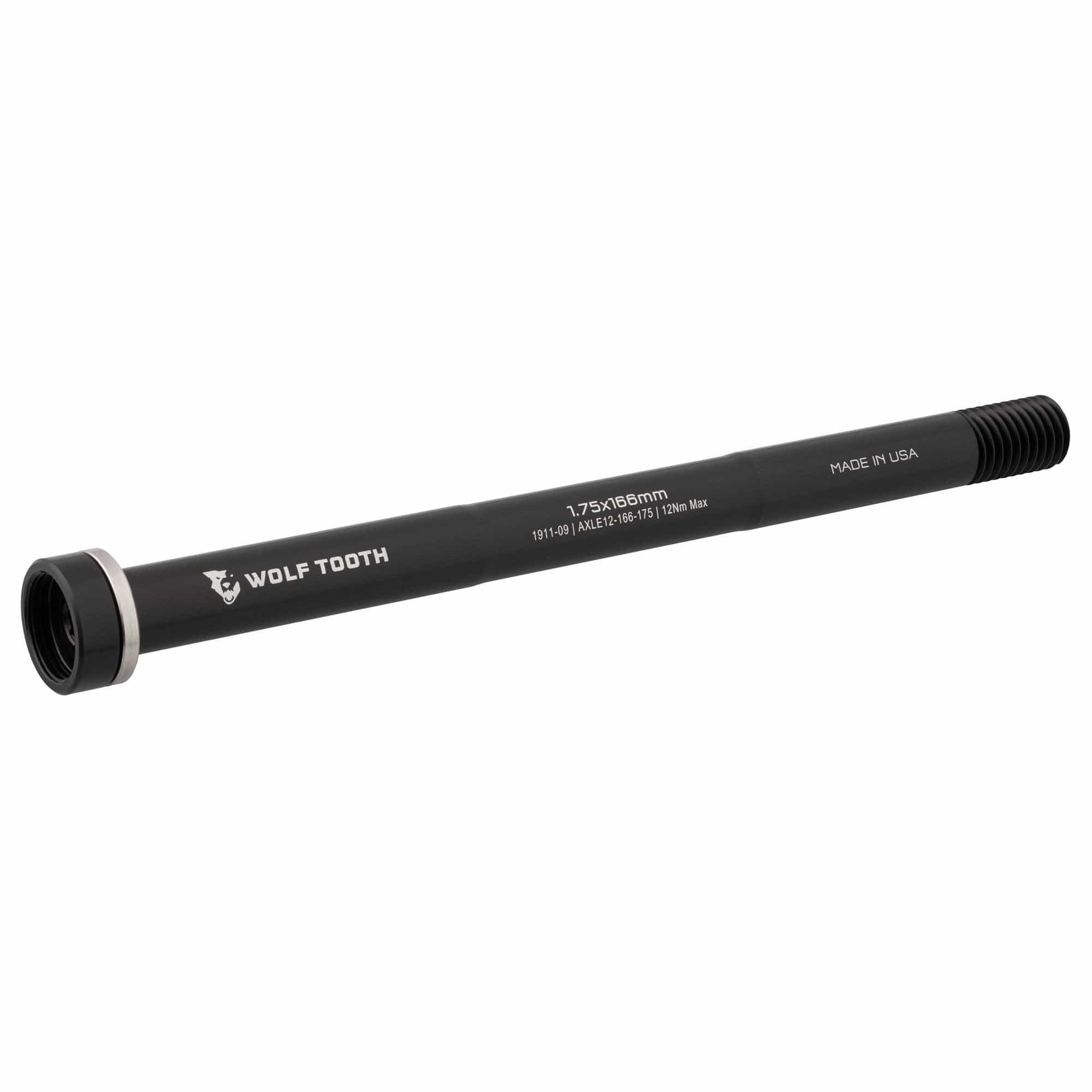

Aluminum / 1.75 x 166mm Sold Out
Aluminum / 1.5 x 164mm In Stock
Aluminum / 1.0 X 180mm Sold Out
Pickup unavailable Currently unavailable for pickup
Online availability Available to order online

Shipping

*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.

International Orders

We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.

We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.

Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.

Lead Times

We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.

Shipping Restrictions

Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.

Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.

Bike Builds

All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.

Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.

Most bikes over $3000 are eligible for free shipping. Bikes under $3000 and other certain bikes require a $199 shipping fee

Received a damaged item or bike?

We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.

Details

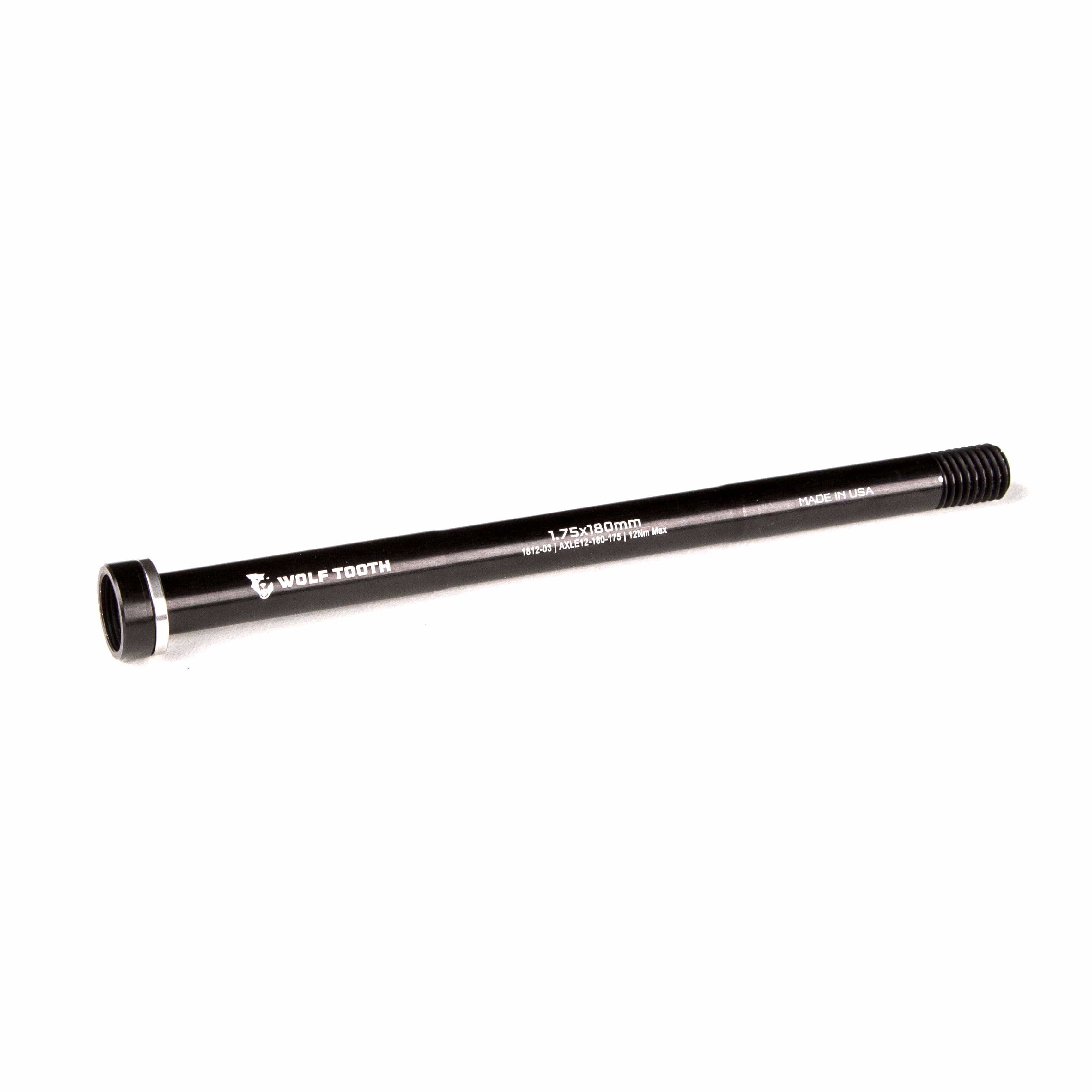

The Wolf Tooth Rear Axle does more than secure wheels

When developing the Rear Axle, Wolf Tooth engineers knew that they wouldn’t be able to get away with any old factory replacement part, even if it was made in Minnesota to aerospace standards. The Wolf Tooth Rear Axle uses a captive steel washer under the head to reduce friction on the dropout face. This protects your expensive frame, transfers more of the tightening torque to the clamping load for a stiffer interface, and prevents the axle from sticking or galling when you want to remove it.

These are also great replacement options for lost or damaged stock axles. Always apply a small amount of grease to the washer and threads when installing.

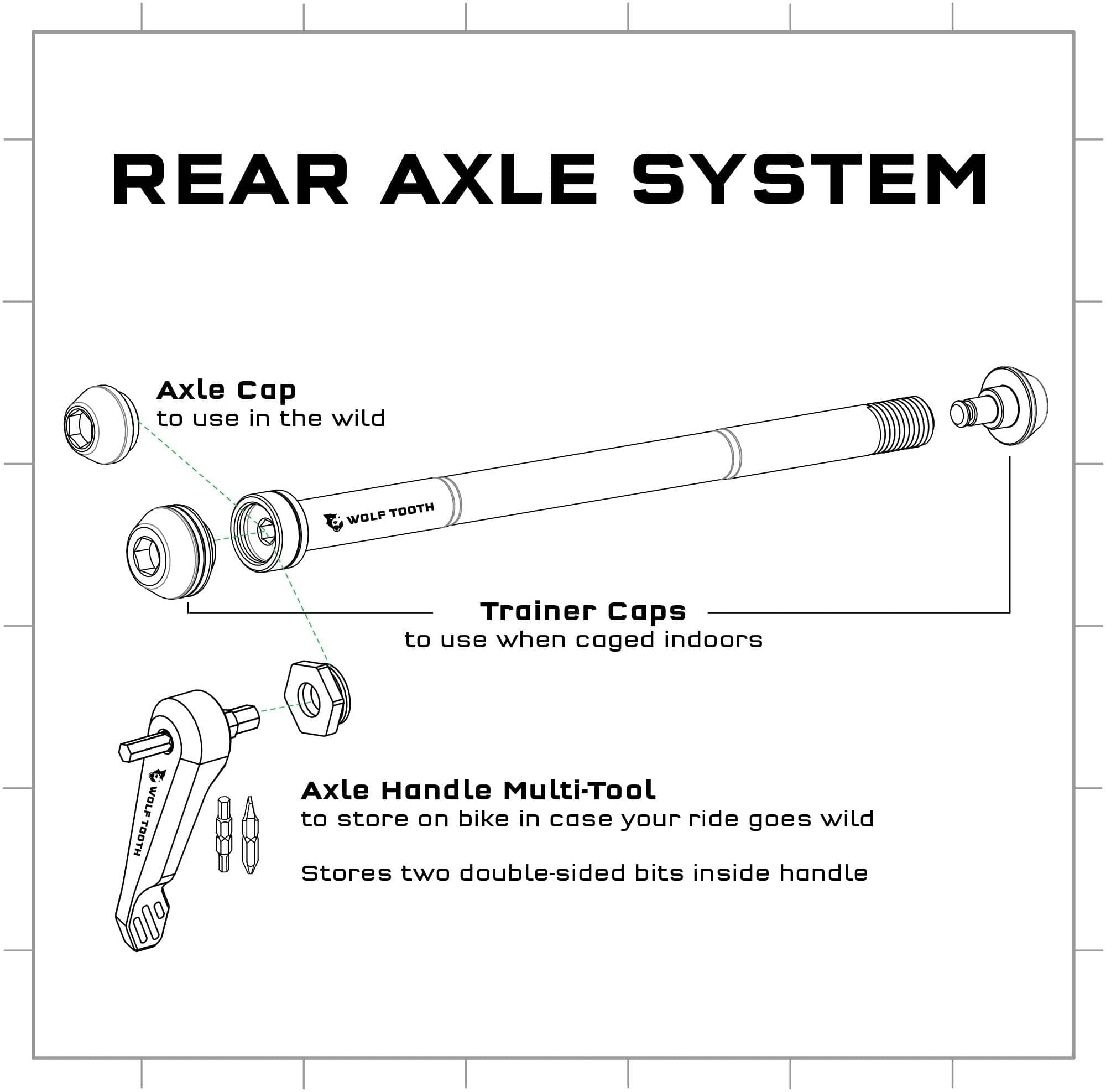

Check out the Axle Caps for added protection and the Trainer Caps for those days on the trainer.

Compatibility

  • 12mm Rear Thru Axle
  • Axle length is compatible +/- 2mm
  • Axle length is independent of hub dimensions. Please use the Axle measurement guide to find the axle length needed.  Make sure to print it at 100% for accurate measurements.

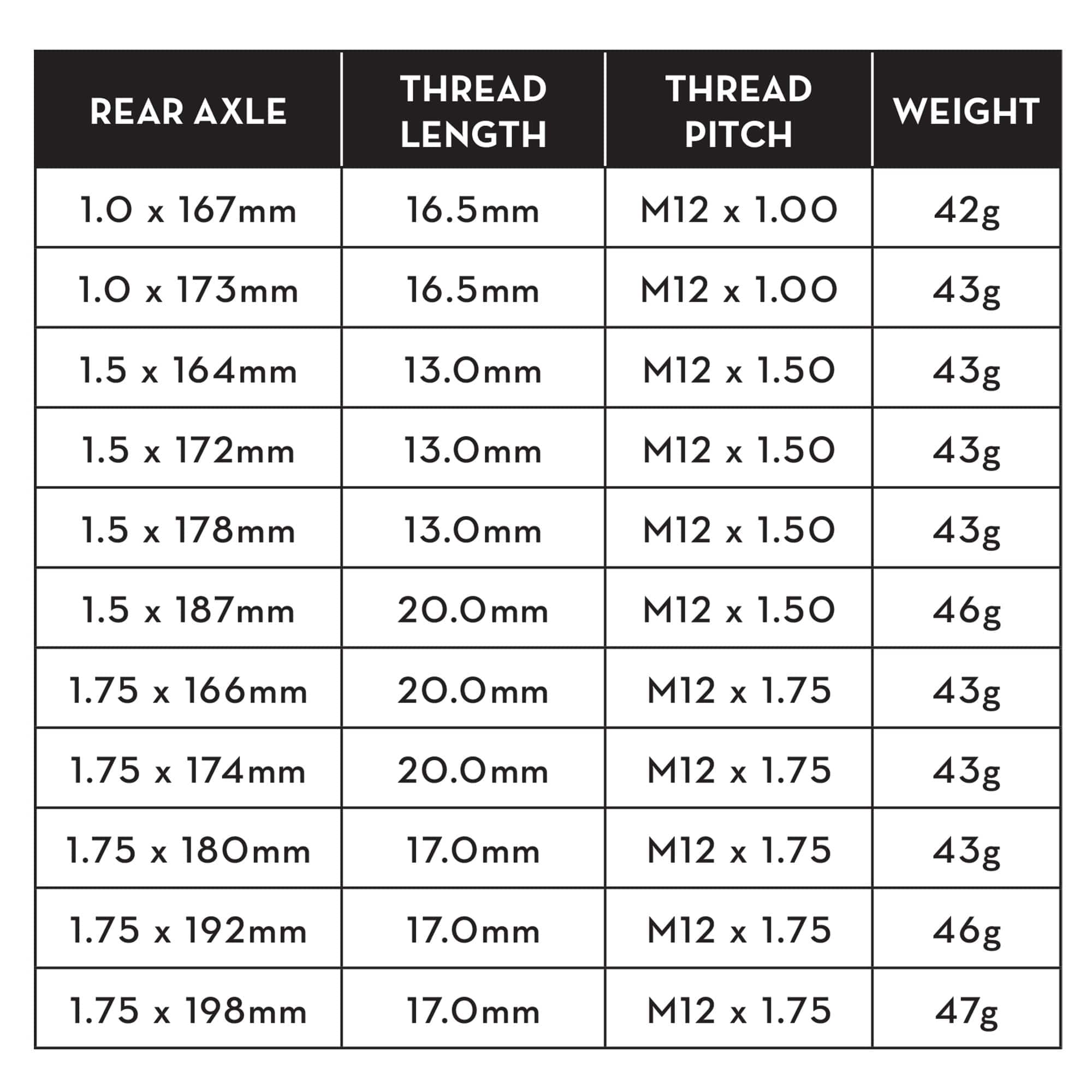

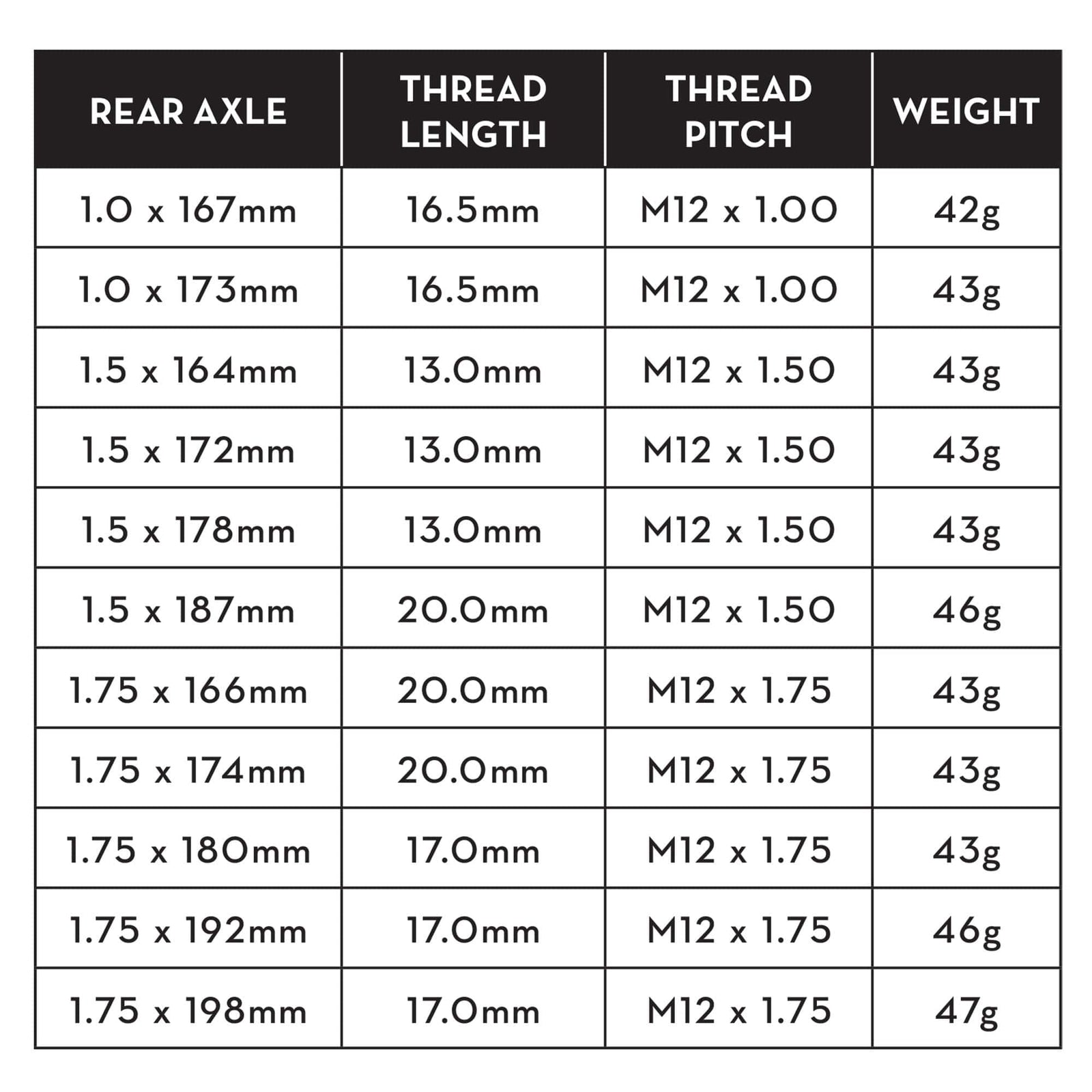

  • Make sure you match up the axle length, thread pitch, and thread length. All three dimensions are critical for proper fit.

[ A4 Metric Guide

Related Products

Tech Specs

Weight: 167 • 42g  |  172-180 • 43g  |  187-192 • 46g  |  198 • 47g
Material:  7075-T6 aluminum, stainless steel washer
Diameter: 12mm

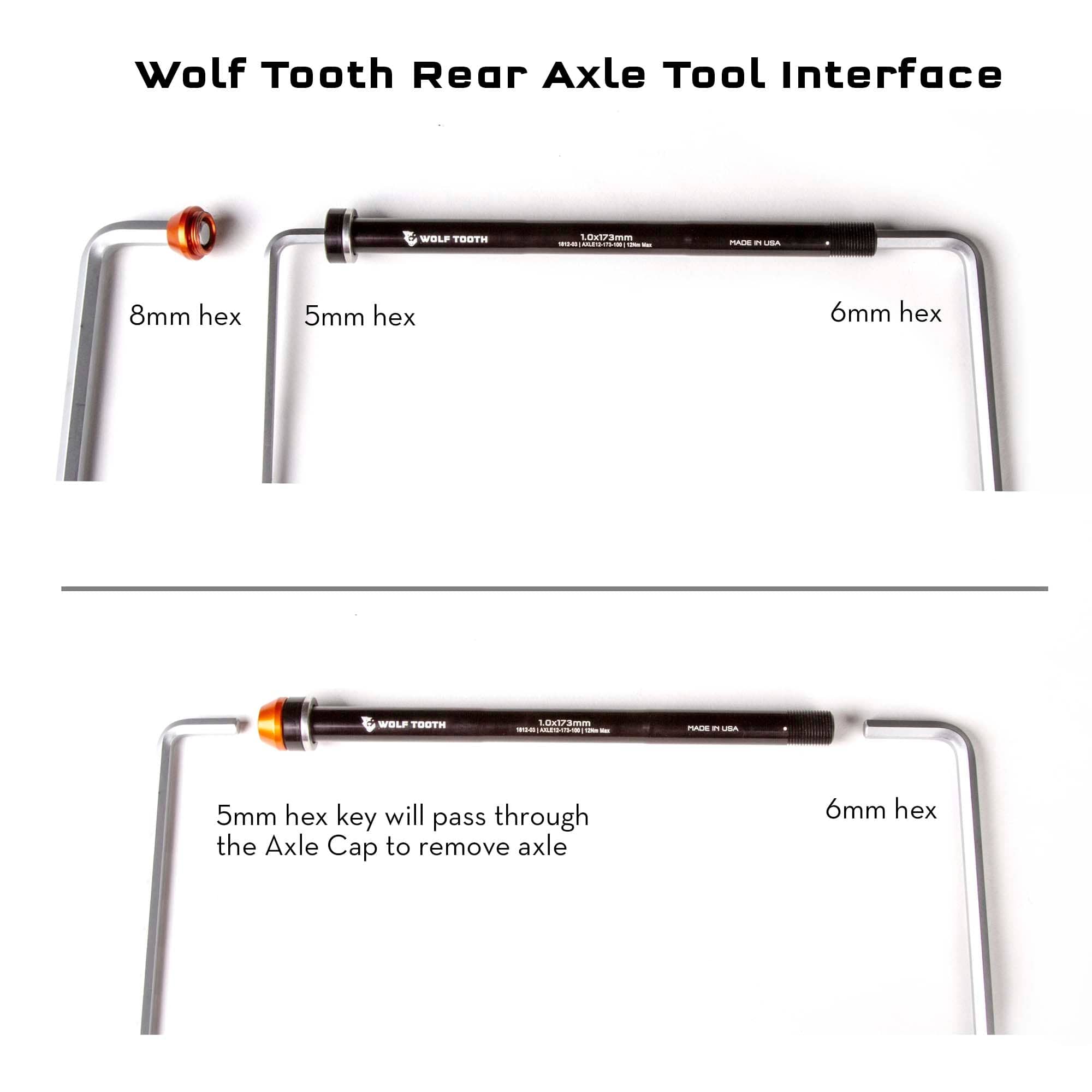

Tool Interface:  5mm and 6mm hex key
Torque Spec:  12 Nm max
Made in the USA
