Pivot Cycles

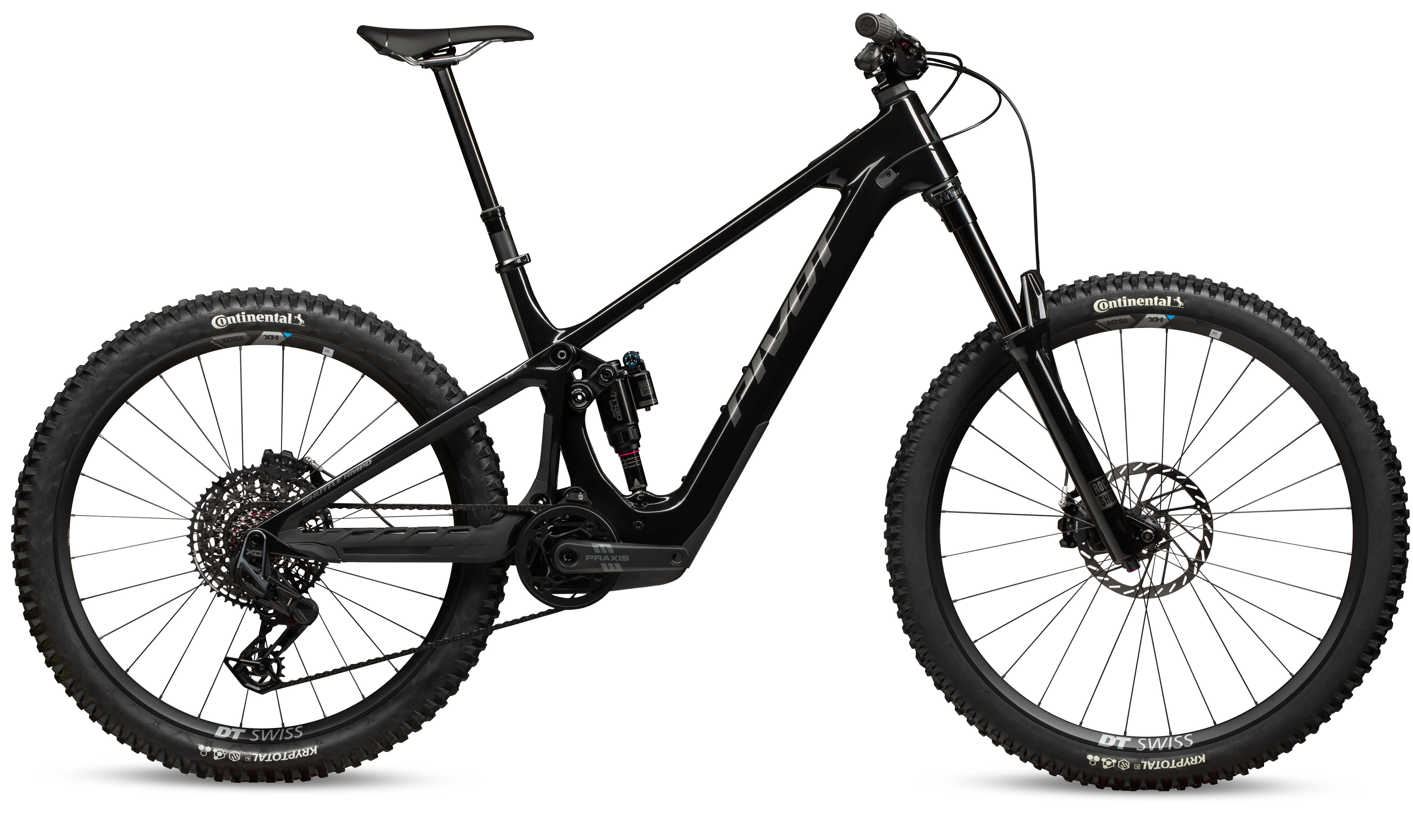

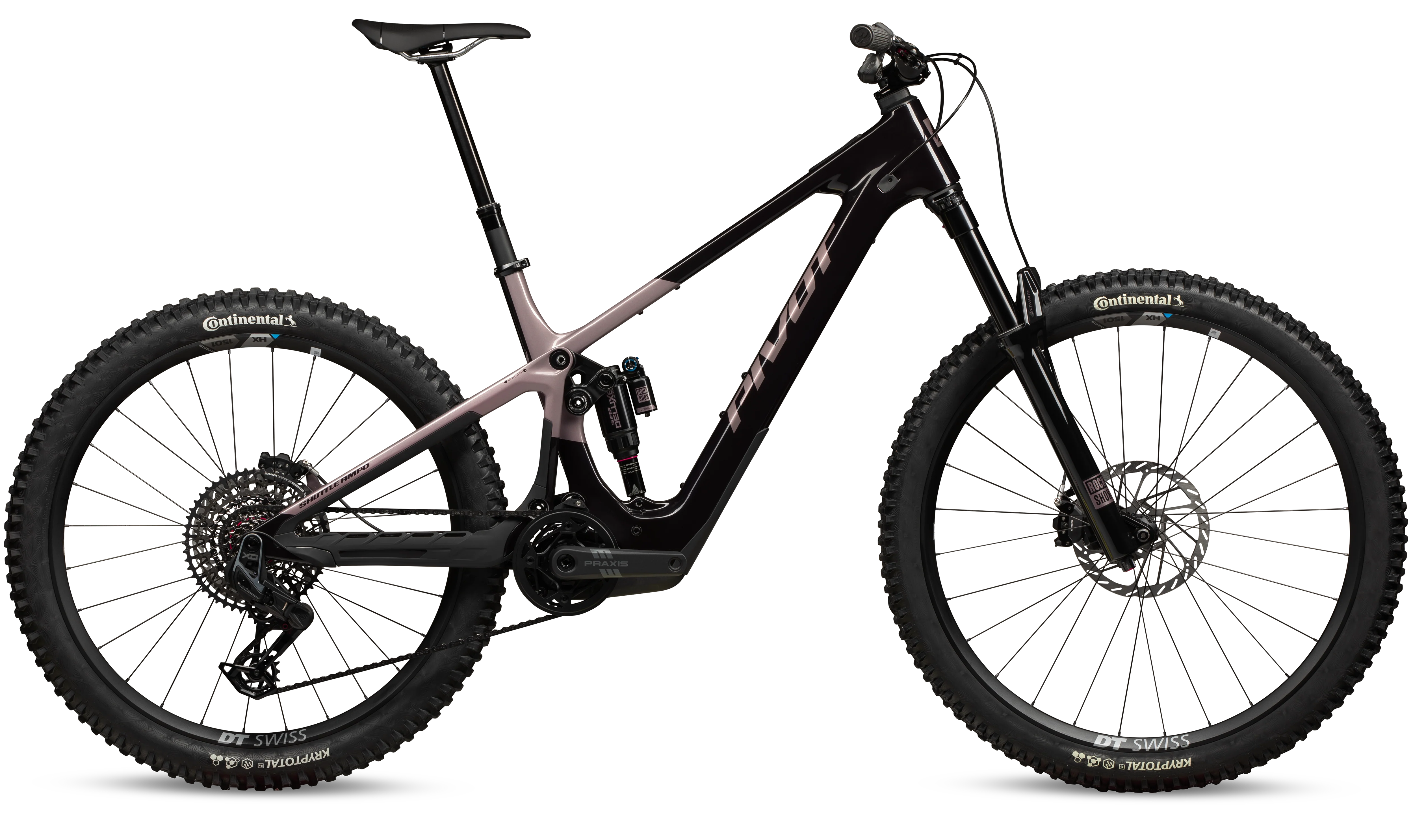

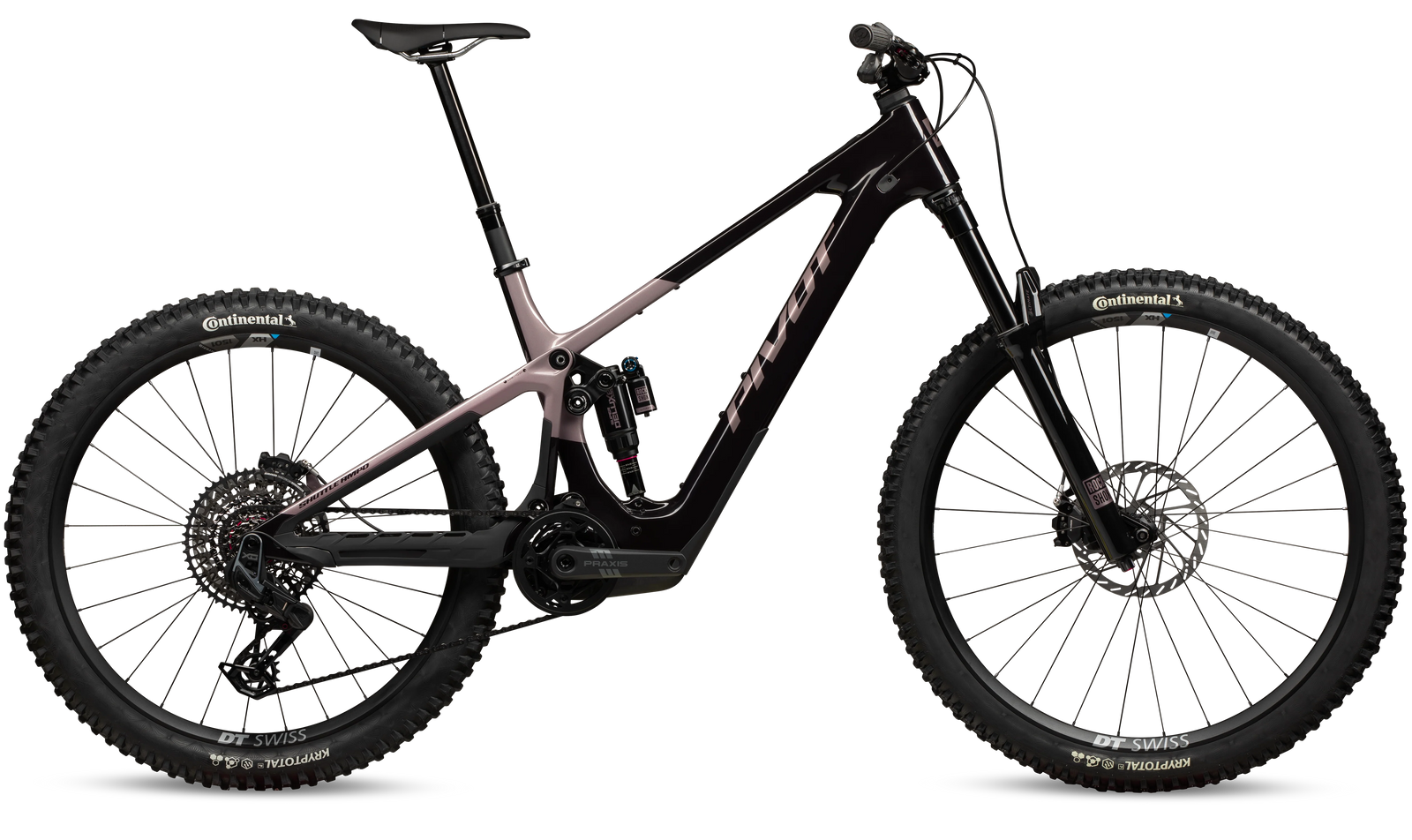

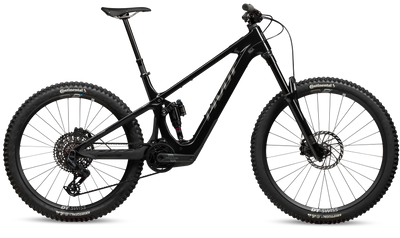

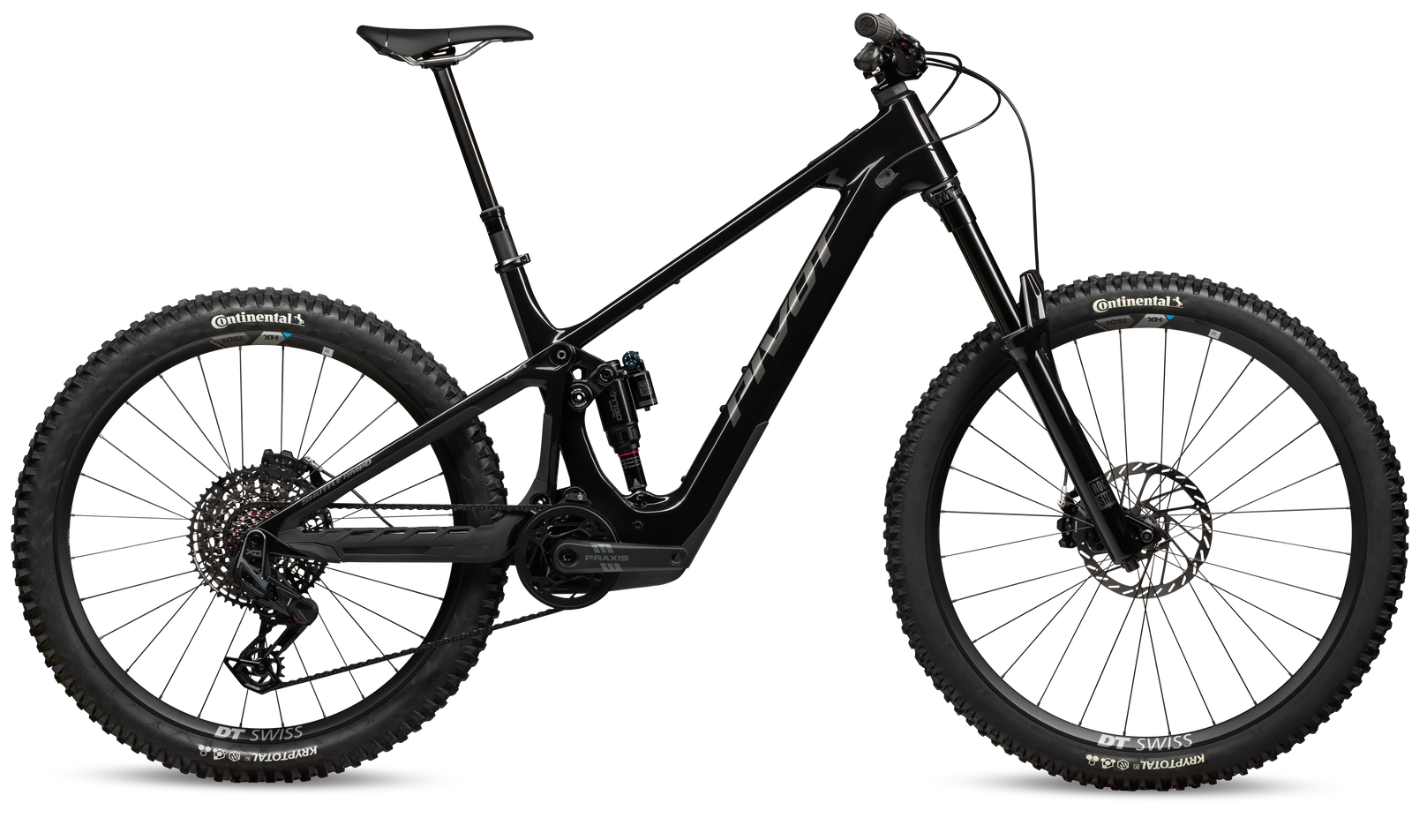

Pivot Shuttle AMP'd Complete Carbon 29" Mountain E-Bike - Pro X0 Eagle Transmission
SKU: 27SAMP1MXAXOB--BMSLGDRPRNSA1-C
Request Custom Configuration
Pivot Shuttle AMP'd Complete Carbon 29" Mountain E-Bike - Pro X0 Eagle Transmission
AVAILABLE FOR IN-STORE PICK UP ONLY
Free Shipping on orders over $50*
Found a better price? Request a Price Match
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Only bikes/frames over $3000 are eligible for free shipping. There is a $150 charge on all bikes/frames under $3000.
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
Built for riders who don’t dial it back — more drive, more bite, more command— the AMP’d is a showcase of what the Avinox M2S can unleash when paired with a chassis forged through two decades of suspension design. The platform works in harmony with the motor, driving the rear wheel, and turning power into speed.
- Ultra light Hollow Core carbon frame
- Avinox M2S drive unit and long-range 800Wh battery across all build levels
- Available in XS to XL frame sizes
- Full-color, OLED touchscreen display
- Wireless Avinox remotes
- 160mm travel fork
- 150mm of progressive rear suspension travel
- Mixed-wheel setup
- Geo flip chip via upper link mount
- Full internal routing with Pivot Cable Port System
- Injection molded rubberized frame protection
- Pivot dock tool system compatible
- Water bottle clearance on all sizes
Specifications:
| Frame | Pivot Shuttle AMP'd Hollow Core Carbon, 150mm DW-Link suspension |
| Fork | RockShox ZEB Ultimate, Charger 3.2, 160mm travel, 44mm offset |
| Rear Shock | RockShox Super Deluxe Ultimate |
| Motor | Avinox M2S Mid-Drive |
| Motor Power | Up to 1,300W Peak |
| Torque | 150 Nm |
| Battery | Avinox 800Wh Integrated |
| Display | Avinox Full Color Touch Display |
| Drive Unit Features | SmoothShift, Smart Assist Modes, App Connectivity |
| Drivetrain | SRAM X0 Eagle Transmission AXS 12-Speed |
| Shifter | SRAM AXS Pod Controller |
| Cassette | SRAM GX Eagle Transmission XS-1275, 10-52T |
| Chain | SRAM X0 Eagle Flattop |
| Crankset | Praxis Alloy eCranks, 155mm, 34T |
| Brakes | SRAM Maven Silver 4-Piston |
| Rotors | SRAM HS2, 200mm Front / 200mm Rear |
| Wheelset | DT Swiss HX1501 Hybrid MX |
| Front Tire | Continental Kryptotal-F 29 x 2.4" SuperSoft Enduro |
| Rear Tire | Continental Kryptotal-R 27.5 x 2.6" Soft Enduro |
| Handlebar | Phoenix Team Carbon |
| Stem | Phoenix Team Enduro V2 (40mm on LG) |
| Grips | Phoenix Factory Lock-On |
| Seatpost | OneUp Dropper V3, 210mm (Large) |
| Saddle | Pivot Pro E-Bike Saddle |
| Headset | Pivot Precision Sealed Cartridge |
| Rear Axle | Super Boost 157 |
| Front Hub Spacing | Boost 110 |
| Rear Travel | 150mm |
| Front Travel | 160mm |
| Wheel Size | MX (29" Front / 27.5" Rear) |
| Frame Material | Hollow Core Carbon |
| Geometry Flip Chip | Yes |
| Color | Burgundy Berry Freeze |
| Weight | Approximately 21.5 kg (47.4 lb, size Large claimed) |
Note: Components are subject to change without notice.
