Details

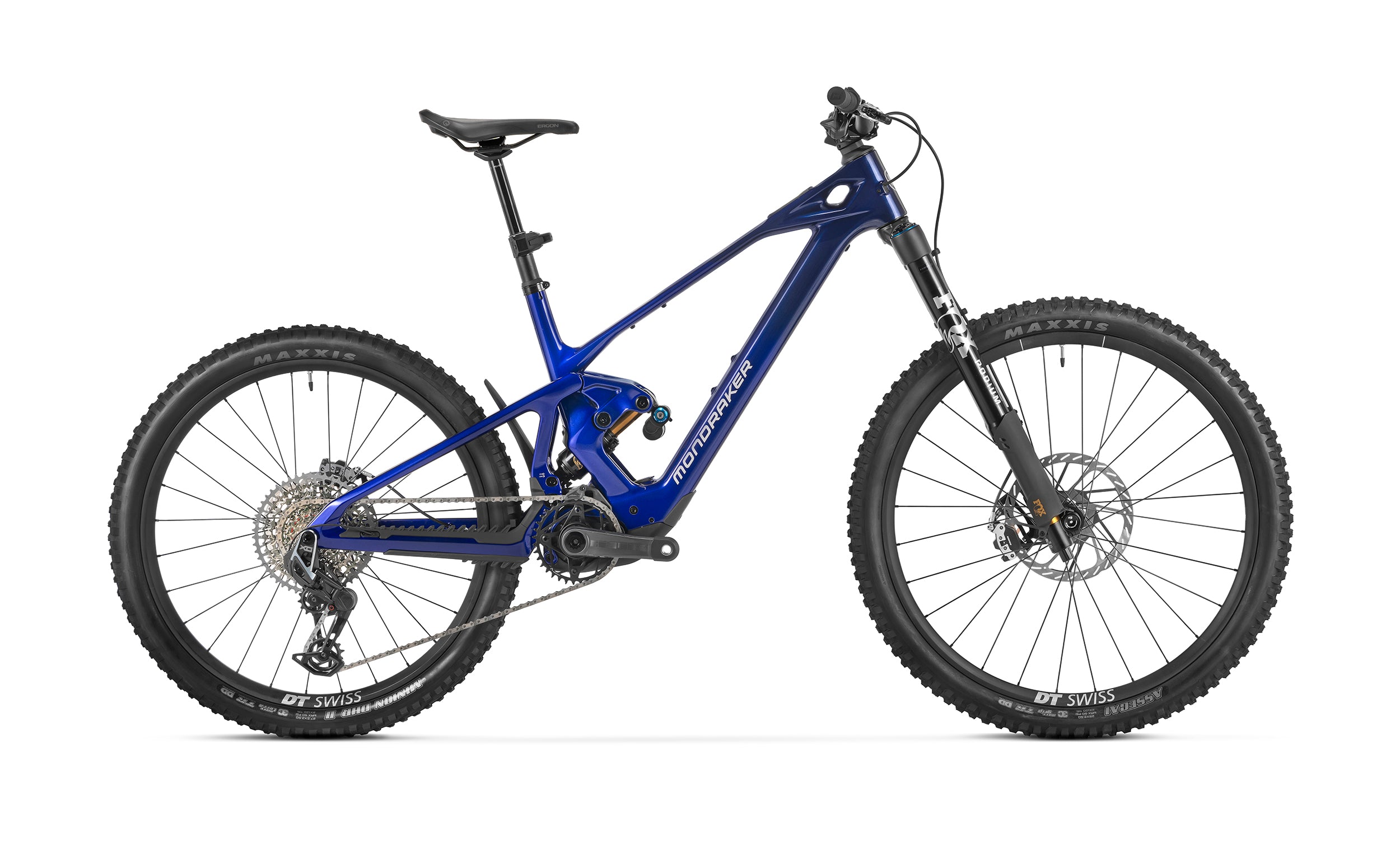

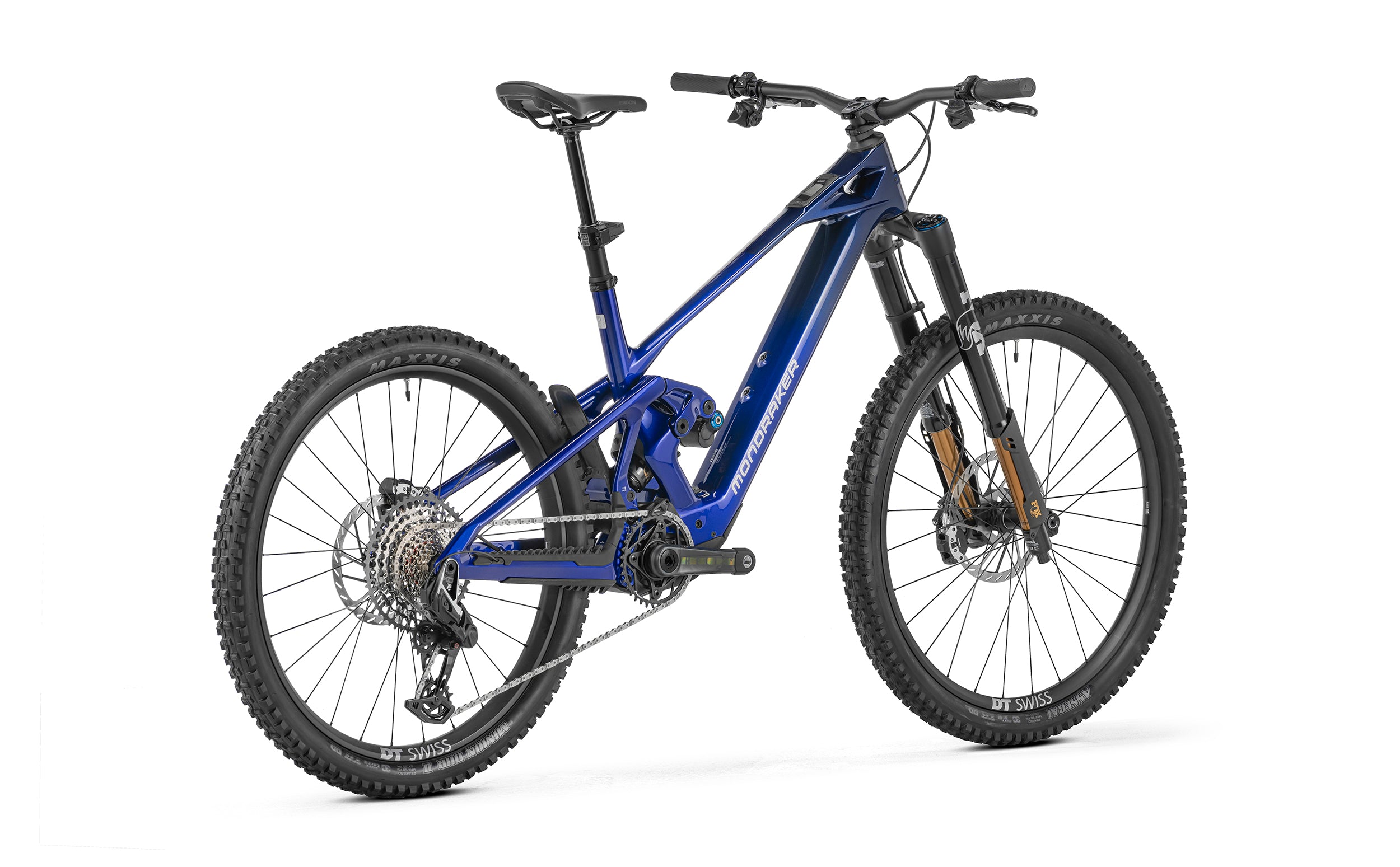

The Mondraker Zendit XR is built to redefine electric enduro performance. Designed from the ground up around the Avinox drive system, it represents a new generation of e-MTBs focused on delivering maximum capability across the most demanding terrain.
At the center of the bike is Mondraker’s Stealth Air carbon frame, engineered specifically for this platform to ensure optimal integration, stiffness, and control. Combined with Mondraker’s Forward Geometry, the Zendit XR delivers stability at speed and confidence on steep, technical trails.
The bike features Mondraker’s ZERO Suspension System with 165mm of rear travel, providing efficient pedaling performance while maintaining full control on aggressive descents. A mixed wheel setup further enhances the balance between rollover capability and agility.
Built for riders who want to push limits, the Zendit XR is designed to perform on both the toughest climbs and the most challenging descents.
Key Features
- Stealth Air full carbon frame designed specifically for the Zendit platform
- Built around the Avinox drive system
- Forward Geometry for stability and control on technical terrain
- ZERO Suspension System with 165mm rear travel
- Mixed wheel (29” front / 27.5” rear) configuration
- Designed for aggressive enduro riding, both climbing and descending
Specifications:
| Category | Specification |
|---|---|
| Frame | Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear Shock | Fox Float X2 Factory Kashima 205x65mm, 2-position lever (Open/Firm), low-speed compression, low-speed rebound, air preload, Trunnion mount |
| Shock Settings | CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers |
| Fork | Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, Boost 20x110mm, 44mm offset, full adjust |
| Headset | Acros ZS56/ZS56, tapered, internal routing, sealing plugs |
| Stem | Onoff S9 30mm, 0º, CNC, 31.8mm |
| Handlebar | Onoff S9 Carbon, 800mm width, 25mm rise (38mm L/XL), 8º back, 5º up |
| Grips | Onoff Desert Pro, lock-on, 135mm |
| Seatpost | RockShox Reverb AXS, 31.6mm (sizes vary by frame) |
| Saddle | Ergon SM10 E-Mountain |
| Front Brake | SRAM Maven Ultimate, 4-piston, 220mm rotor |
| Rear Brake | SRAM Maven Ultimate, 4-piston, 200mm rotor |
| Brake Lever | SRAM Maven Ultimate, carbon lever, tool-free adjust |
| Rims | DT Swiss HXC 1500 Spline Carbon, 30mm internal, tubeless |
| Spokes | DT Swiss Straightpull, Hybrid II |
| Front Hub | DT Swiss 350, Boost 20x110mm |
| Rear Hub | DT Swiss 350, 72T Ratchet DEG, Boost 12x148mm, XD |
| Front Tire | Maxxis Assegai 29x2.5WT, 3C MaxxGrip, DD |
| Rear Tire | Maxxis Minion DHR II 27.5x2.5WT, 3C MaxxTerra, DD |
| Crankset | e*thirteen Helix Race Carbon, 155mm |
| Chainring | SRAM Eagle 36T T-Type |
| Chain | SRAM GX Eagle T-Type, 12s |
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12s |
| Shifters | SRAM AXS Pod Controller |
| Cassette | SRAM XS 1275, 10-52T |
| Others | SRAM AXS Extension Cord / Avinox 12A Charger |
| Weight | 23.1 kg |
| Display | Avinox DP100 / BC100 Wireless Controller |
| Motor | Avinox M2S |
| Battery | Avinox 800Wh |
