Request More Information
Requesting pricing for
2026 Mondraker CRAFTY CARBON S 29" Enduro/Am Mountain E-Bike
$6,374.15
Checking pickup availability...
Loading store availability...
Mondraker

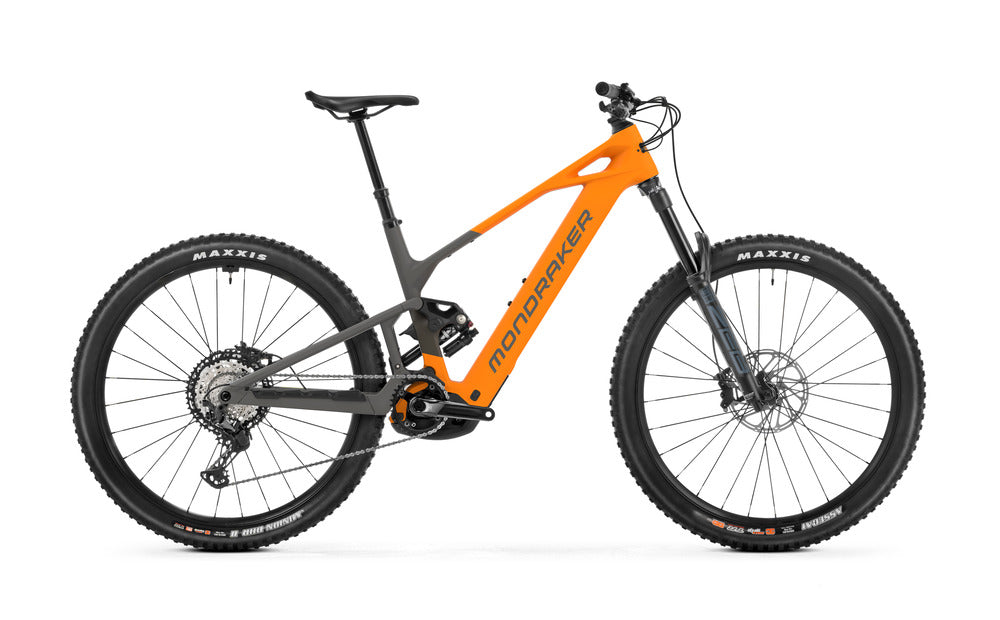

2026 Mondraker CRAFTY CARBON S 29" Enduro/Am Mountain E-Bike
SKU: 010.26US295
Request Custom Configuration
2026 Mondraker CRAFTY CARBON S 29" Enduro/Am Mountain E-Bike
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Most bikes over $3000 are eligible for free shipping. Bikes under $3000 and other certain bikes require a $199 shipping fee
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
| Component | Specification |
|---|---|
| Frame | Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
| Sizes | S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
| Rear Shock | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Shock Settings | CS40 compression, RL70 rebound, Rezi B40, LML, 0.2 volume spacer |
| Fork | RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Handlebar | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Grips | Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
| Seatpost | X-Fusion Manic, diameter 31.6mm, 1X Remote lever. S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200mm |
| Saddle | Ergon SM-10 |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram DB8 Stealth, tool reach adjust, lever pivot bushings |
| Rims | WTB Sportterra Tough, 6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Spokes | WTB Straight gauge spokes & black brass locking nipples |
| Front Hub | WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts |
| Rear Hub | WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tire | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Crankset | E.13 Helix Core E*Spec Plus, All sizes: 160mm |
| Rings | Sram Eagle 34T T-Type, direct mount, steel, CL55 |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Rear Derrailleur | Sram 70 Eagle, T-Type, 12s |
| Shift Levers | Sram Trigger 70, 12s, T-Type Actuation |
| Casette | Sram XS-1270, 10-52T, 12s |
| Weight | 53,6 lbs |
| Display | Kiox 400C / Bosch Mini Remote |
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| Battery | Bosch Powertube 800Wh |
