Request More Information
Requesting pricing for

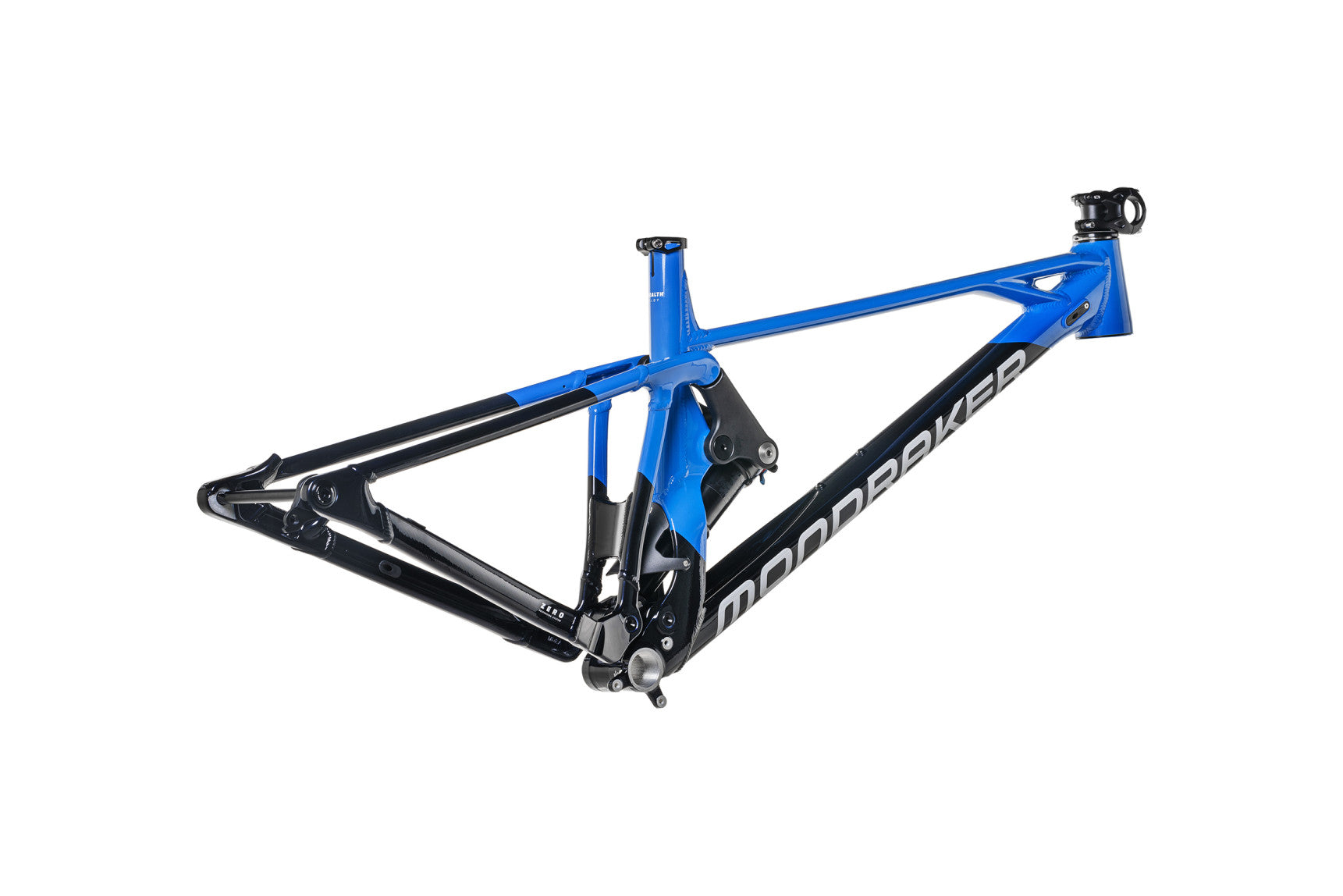

2024 Mondraker RAZE R 29" TRAIL Mountain Frame
$1,999.00
Contact us with questions about Labor Day Pricing
Checking pickup availability...
Loading store availability...
Mondraker
2024 Mondraker RAZE R 29" TRAIL Mountain Frame
SKU: 010.24US098
Request Custom Configuration
2024 Mondraker RAZE R 29" TRAIL Mountain Frame
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Most bikes over $3000 are eligible for free shipping. Bikes under $3000 and other certain bikes require a $199 shipping fee
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
| Field | |
|---|---|
| Frame | Raze 29 6061 Alloy Stealth Evo, hydroed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05 |
| Sizes | S: 380mm / M: 420mm / L: 470mm / XL: 510mm |
| Rear Shock | Fox Float EVOL Perance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings |
| Shock Settings | Light compression, light rebound, air volume spacer 0.6 |
| Fork | Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| Fork Remote | — |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Saddle | Mondraker MDK Series, SRX, steel rail |
| Front Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram G2 R, tool-free reach adjust, lever pivot bushings |
| Rims | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Spokes | Mavic 24 straight-pull double butted spokes |
| Front Hub | Mavic Infinity hub, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub |
| Front Tire | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tire | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Crankset | Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52 |
| Rings | 32T, CNC-machined alloy, X-SYNC 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Pedals | — |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Chain Guide | — |
| Front Derailleur | — |
| Rear Derailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shift Levers | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Motor | — |
| Battery | — |
| Display | — |
| Derailleur Hanger | Sram UDH |
