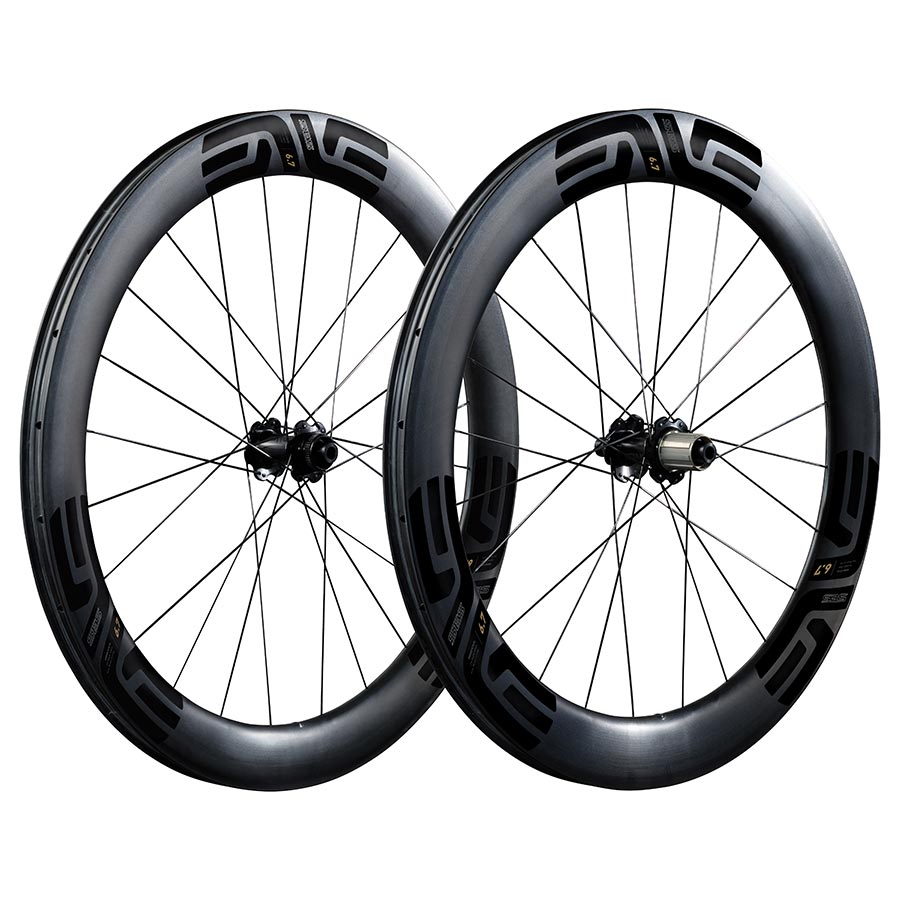

2022 ENVE Composites SES 6.7 Clincher Wheelset - 700, 12 x 100/142mm, Center-Lock, XDR, Black, ENVE Alloy Hub
Striking the ultimate balance between weight savings, stability, aerodynamics, and rolling efficiency, the SES 6.7 defines Real-World Fast and raises the bar for modern aero wheel performance. Grams of rim, versus grams of drag, make the SES 6.7 the outright fastest wheel on the road.
- When speed matters most
- 1497-gram wheelset weight (with XDR body)
- Inner rim width: 23mm
- Aero optimized tire size: 27mm-28mm (Labeled)
- Minimum labeled tire size: 25mm
- Tubeless Only
Once a rim goes beyond the 70mm depth, aero efficiency rapidly tapers off and the additional weight quickly begins to neutralize the marginal aero gains that the deeper rim provides. These are the learnings from more than a decade pursuing the ultimate Real-World Fast aero wheelset.
Letting our experience, CFD, and the wind tunnel guide us, we landed on the sweet spot of aerodynamics, weight, and stability to create a wheelset that goes head-to-head in the wind tunnel with the very best time trial and triathlon wheels on the market. Couple that with an impressively light sub-1500 gram weight, superior stability, along with a high-volume design, and you end up with a wheelset that defines Real World-Fast.
The SES 6.7 has been aerodynamically optimized around a labeled 27mm tire since data shows unequivocally that in real-world riding conditions, a higher volume tire provides more speed, confidence, and control. As such, we developed the SES 27 tire to be the high-volume race tire for the modern road cyclist. Featuring a 21mm internal rim width, the SES 6.7 can be paired with a 25mm tire, but for those wanting to decrease rolling resistance and maximize speed, a 27mm-28mm tire is the optimal labeled tire width.
Like the rest of the SES wheel line, the SES 6.7 has been optimized for road tubeless performance and features a hookless bead design that allows for the precise rim dimensions required to achieve the best tubeless performance. To further improve tubeless tire and rim reliability, this aerodynamic carbon fiber wheelset features ENVE’s patent pending Wide Hookless Bead, a design element at the leading edge of the rim that provides a more forgiving surface, that when impacted, will reduce the likelihood of pinch-flatting a tubeless tire.
ENVE’s aero wheel development program is driven by our Real-World Fast mantra. This means that each wheel is developed under consideration of airflow efficiency, crosswind stability, handling, weight, tire integration, and much more. The result is a refined collection of wheels that are purpose built to be best-in-class and provide the maximum speed and efficiency benefit available for their intended discipline application.
Overtime, the SES 4.5 has redefined the bar by which all other aero wheels are judged. Faster than nearly all our competitor’s deeper wheels, while also being lighter, and more confidence inspiring in gusting crosswinds, the SES 4.5 is the ENVE house favorite for a reason. If you’re a speedfreak looking for the perfect race wheelset, look no further.
THE SES DIFFERENCE
There’s a simple reason why SES wheels consistently score “best in test” in nearly any third-party aero test. We’re committed to sweating the small stuff and chasing the marginal gains that others will not.
- In-frame development and ride testing have taught us that unique rim shapes and constructions between the front and back wheels optimize efficiency and the ride experience.
- Front wheels are designed to maximize crosswind stability. A rider's stability on the bike, especially in time trial and triathlon, is critical for aero efficiency and overall performance.
- Rear wheels are designed to recapture air flow as it passes from the front of the bike to the back, which maximizes drag reduction.
- Aerodynamically optimized around modern high-volume tubeless tires.
- The all-new SES lineup was developed around the ENVE SES 27mm tire.
- Tested at 20 mph (32 kph) and 30 mph (48 kph). Our SES promise of Real-World Fast isn’t limited only to cycling’s elite.
- Weighted Average Drag - All wind angles are not created equally. Anemometer data shows that most of your ride time will be spent in wind at less than 12 degrees yaw. Weighted average drag is a tool that helps a rider understand the aero efficiency of a wheelset in real-world wind and riding conditions.
Tubeless represents the pinnacle of road wheel and tire performance, and the hookless bead design plays a significant role. A hookless rim design allows for machined metal tooling to establish a precise and consistent bead seat diameter that meets the defined requirement by ETRTO. That precision fitment between the tubeless tire bead and the rim’s bead seat ensures air and tire retention.
ENGINEERED FLAT PROTECTION
Wide Hookless Bead - Patent Pending
Most flat tires are caused by one of two things; Intrusion punctures (staples, thorns, glass,
etc.) or pinch-flats (potholes, railroad tracks, rocks, etc.). While there is little we can do as a rim manufacturer to prevent punctures, the rim feature called Wide Hookless Bead greatly reduces the likelihood of pinch-flatting. Wide Hookless Bead technology works by providing a blunt surface upon which to bottom out the tire, dissipating energy across a larger surface area and preventing tire damage. This allows you to run the correct tire pressure without the worry of pinch-flatting.
ENVE PREMIUM ROAD HUB
What could be considered the nucleus of an SES wheel, the ENVE Premium Road Hub brings efficiency, longevity, and simplicity to every wheelset. From hub flange geometry to bearing longevity to Perfect PreloadTM, every design detail comes from more than a decade of pairing ENVE carbon rims with the leading hubs on the market. Key benefits of the ENVE Premium Road Hub are:
- Hub Shell Geometry: The hub’s flange diameters, spacing, and spoke hole lacing pattern assists in maximizing torsional stiffness, spoke tangency, and power transfer.
- Lightweight: Cold-forged and machined 6061 alloy for durable lightweight performance. Weight: Front 126 grams, Rear 256 grams
- Premium Grade Stainless Steel Bearings: The bearings selected are premium grade and custom-made for ENVE. Full stainless steel races promise that riders living near the coast, or riding in wet or humid environments, will not experience corroded bearings, races, or external surfaces.
Perfect PreloadTM: Our system ensures perfect bearing preload from the factory via a tuned wave washer installed on the axle. The result is a maintenance free design that promises longer bearing life, and improved rolling efficiency over the lifespan of the hub.
|SPECIFICATIONS TABLE||SES 6.7|
|Rim Weights (g)||430||449|
|F&R Wheel Weights (g)||675||822|
|Wheelset Weights (g)||1497|
|Tire Type||Tubeless Ready|
|External Rim Width||30mm||29mm|
|Internal Rim Width||23mm||23mm|
|Effective Rim Diameter||538||526|
|Tubeless Tape Width||26.5mm|
|Valve Stem Length F/R (mm)||80mm||85mm|
|Aero Optimized Tire||ENVE SES 27 TUBELESS READY|
|Aero Optimized Tire (ENVE SES) INFLATED||28mm|
|Minimum Tire Size (Labeled)||25mm|
|Maximum Tire Pressure for Min. Tire Size||90||6.2|
|SES 4.5 Spoke Chart|
|ERD||Non Drive||Drive Side|
|Front - Hub Disc ENVE Alloy 24H 12X100||538||260||262|
|Rear - Hub Disc ENVE Alloy 24H 12X142||526||256||254|
