Manitou

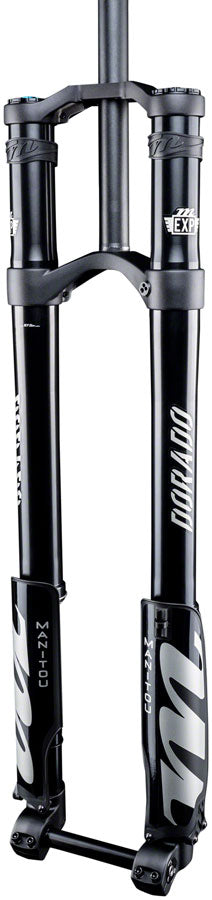

Manitou Dorado Expert Suspension Fork - 29", 203 mm, 20 x 110 mm, 57 mm Offset, Black, Straight Steerer
SKU: 191-38304-A201
Free Shipping on orders over $50*
Found a better price? Request a Price Match
Shipping
Shipping
*Free shipping applies to parts orders over $50 shipping to addresses within the contiguous U.S. (excludes HI, AK, APOs and US territories). Some exclusions apply.
International Orders
We can sell and ship some items internationally but certain brands or substances may be prohibited from shipping outside of U.S. or to certain territories.
We are unable to estimate local taxes and VAT and are not responsible for any of these charges or duties.
Package forwarders may be utilized at your discretion. We are not responsible for any damage that occurs after your item has been delivered to the shipping address. All shipments need to be inspected prior to being forwarded to secondary destinations.
Lead Times
We under promise and over deliver. Although many products will ship the same day or next day, our official policy is 2-4 business days of handling time including expedited orders (Next Day Air, etc.). If you need something in a rush please use a premium shipping service and contact us prior to placing your order for a more accurate ETA.
Shipping Restrictions
Certain items containing lithium batteries, compressed air or hazardous materials may only be shipped within the contiguous U.S. using ground delivery only.
Oversized items, including bikes, may not be available for expedited shipping. We will contact you should in the event that your selected shipping service is unavailable for your order.
Bike Builds
All bikes are built, checked and test ridden prior to boxing and shipping. This process averages 1-3 weeks depending on our backlog and the complexity of your build. Expedited builds are available for an additional fee, contact us for details.
Complete bikes are packed in our own specially designed bike boxes but do require some basic assembly. If you aren't confident in your mechanical abilities please have your local shop do the final assembly.
Only bikes/frames over $3000 are eligible for free shipping. There is a $150 charge on all bikes/frames under $3000.
Received a damaged item or bike?
We do our best to protect everything we ship but accidents do happen. Please keep all packaging and contact us within 24 hours of receiving your order so we can file a claim.
Details
Back and better than ever, the new Dorado Expert is ready to take on the gnarliest conditions mountain biking can provide. Whether you’re looking to cut seconds off the splits, lap the local park, or get sendy in the back hills of Utah the Dorado Expert has you covered. Featuring an all new 37mm chassis, completely redesigned internals, and on-trail precision that only inverted forks can provide, the new Dorado is your ticket to the best ride you’ve ever had.
- 37mm 6000 Series Aluminum stanchions with 6000 Series Aluminum upper tubes
- Aluminum upper and lower crown, and steerer
- TPC+ with HBO damper system features separate systems that govern hydraulic bottom out, high speed and low speed compression damping, and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
- TSR Bleeders, Hydraulic and rubber bumper bottom out protection
- Removable bolt on fender
- 180, 190, 203mm internally adjustable travel
Specifications:
- Axle to Crown Length: 602
- Brake Type: Post Mount 203
- Color: Black
- Crown Race: 30
- Defined Color: Black
- External Adjustments: Rebound Damping
- External Adjustments: Low Speed Compression Damping
- External Adjustments: High Speed Compression Damping
- Front Axle: 20mm Thru x 110mm
- Lockout Switch: None
- Maximum Tire Width: 67
- Negative Spring: Air
- Offset: 57
- Positive Spring: Air
- S.H.I.S. Stem Clamp Diameter: Direct Mount
- S.H.I.S. Stem Clamp Diameter: 28.6
- Stanchion Diameter: 37
- Steerer Type: Straight
- Travel (mm): 203
- Wheel Size: 29"
